Introduction to Dynamic instrumentation in Mobile Security

This is a follow-up blog post after my presentation in Nanyang Technology University CSEC Offensive Cyber Security Club run by a group of highly motivated individual. Please check out their page to know when is the next security meet up.

Motivation

I find myself spending more and more time doing dynamic instrumentation and decided to collect some interesting technique I found while doing dynamic instrumentation in mobile security. My motivation of doing it is to:

understand how client-side security can be bypassed
optimize the Mobile application reverse engineering process
optimize the Mobile application penetration testing process
hunt bugs on popular bug bounty program that has mobile application

Introduction

Dynamic instrumentation is to analyze and modify the behavior of the binary application at runtime through the injection of instrumentation code. It might sound mouthful but essentially, it allows a user to execute their debug script inside another process.

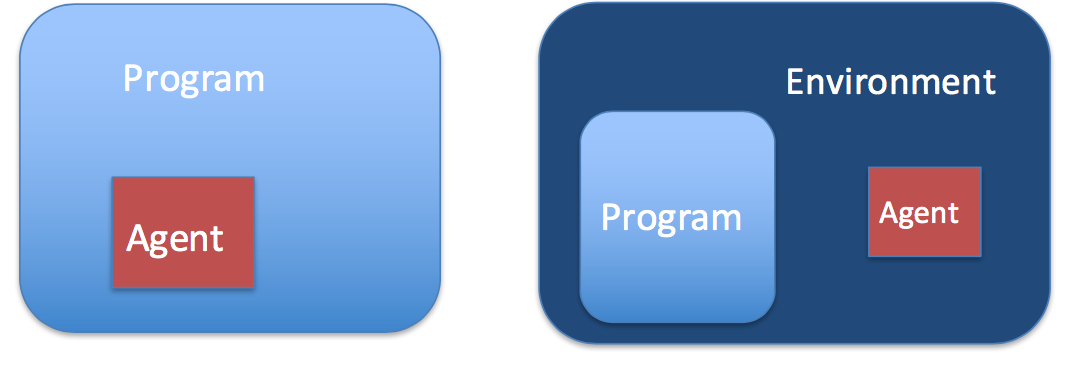

They are mainly two different types of instrumentation - Embedded, and injection. Embedded instrumentation can be done by patching the binary application with our instrumentation agent in the form of a shared library, dll, and dylib. Whereas injection will spawn the instrumentation agent as a process and will inject into the runtime environment like Android Zygote. The main reason to choose one over another is that only embedded can successfully run in a jailed environment.

Dynamic instrumentation in Mobile Security

We will be using Frida as our choice of instrumentation framework. Frida injects Javascript engine (Duktape or Google v8) into processes to explore native apps on Windows, MacOS, Linux, Android or QNX. With Frida, we are able to access process memory, overwrite functions during runtime, hook, call and trace functions.

One of the main reason to use dynamic instrumentation in mobile is to enumerate functions, reversing black box mobile all and bypassing client-side security. I will demonstrate a few techniques to leverage Frida to bypass some client-side security.

Bypass Official Android SSL Pinning Method

The official Android SSL pinning guidance pin the CA cert on SSLContext.init functions. [1]

// Create a TrustManager that trusts the CAs in our KeyStore
String tmfAlgorithm = TrustManagerFactory.getDefaultAlgorithm();
TrustManagerFactory tmf = TrustManagerFactory.getInstance(tmfAlgorithm);
tmf.init(keyStore);

// Create an SSLContext that uses our TrustManager
SSLContext context = SSLContext.getInstance("TLS");
context.init(null, tmf.getTrustManagers(), null);

We can bypass it by using raptor/0xdea's script. It will hook the SSLContext.init and substitute the pinned TrustManager to ours.

SSLContext.init.overload("[Ljavax.net.ssl.KeyManager;", "[Ljavax.net.ssl.TrustManager;", "java.security.SecureRandom").implementation = function(a,b,c) {
           console.log("[o] App invoked javax.net.ssl.SSLContext.init...");
           SSLContext.init.overload("[Ljavax.net.ssl.KeyManager;", "[Ljavax.net.ssl.TrustManager;", "java.security.SecureRandom").call(this, a, tmf.getTrustManagers(), c);
           console.log("[+] SSLContext initialized with our custom TrustManager!");

Root Detection

The typical root detection technique employed in Android is to check if SU binary, path or root tags. If any of the blacklisted item were listed, the application will terminate itself. Below is a sample code we reference from the OWASP MSTGUncrackable - Level 1, you can find the apk here.:

public class c {
    /*
     * Enabled force condition propagation
     * Lifted jumps to return sites
     */
    public static boolean a() {
        boolean bl = false;
        String[] arrstring = System.getenv("PATH").split(":");
        int n = arrstring.length;
        int n2 = 0;
        do {
            boolean bl2 = bl;
            if (n2 >= n) return bl2;
            if (new File(arrstring[n2], "su").exists()) {
                return true;
            }
            ++n2;
        } while (true);
    }

    public static boolean b() {
        String string = Build.TAGS;
        if (string != null && string.contains("test-keys")) {
            return true;
        }
        return false;
    }

    public static boolean c() {
        String[] arrstring = new String[]{"/system/app/Superuser.apk", "/system/xbin/daemonsu", "/system/etc/init.d/99SuperSUDaemon", "/system/bin/.ext/.su", "/system/etc/.has_su_daemon", "/system/etc/.installed_su_daemon", "/dev/com.koushikdutta.superuser.daemon/"};
        int n = arrstring.length;
        for (int i = 0; i < n; ++i) {
            if (!new File(arrstring[i]).exists()) continue;
            return true;
        }
        return false;
    }
}

To thwart the root detection mechanism we can either hook on the functions and always return true on every checks or we can prevent the application from quiting.

Always return true

 var rootcheck1 = Java.use("sg.vantagepoint.a.c");
    rootcheck1.a.overload().implementation = function() {
            send("sg.vantagepoint.a.c.a()Z   Root check 1 HIT!  su.exists()");
            return 0;
    };

    var rootcheck2 = Java.use("sg.vantagepoint.a.c");
    rootcheck2.b.overload().implementation = function() {
            send("sg.vantagepoint.a.c.b()Z  Root check 2 HIT!  test-keys");
            return 0;
    };

    var rootcheck3 = Java.use("sg.vantagepoint.a.c");
    rootcheck3.c.overload().implementation = function() {
            send("sg.vantagepoint.a.c.c()Z  Root check 3 HIT! Root packages");
            return 0;
    };

Never Quit [winner doesn't quit]

setImmediate(function() {
    console.log("[*] Starting script");
    Java.perform(function() {
    console.log("[*] Hooking calls to onDestroy");
    cyClass = Java.use("cy");
        cyClass.onDestroy.implementation = function(v) {
         console.log("[*] onDestroy called.");
        }
        cyClass.sendTroubleshootingLogs.implementation = function() {
                     console.log("[*] sendTroubleshootingLogs called.");
        }
    destroyClass = Java.use("android.app.Activity");
        destroyClass.onDestroy.implementation = function() {
            console.log("[*] Activity.onDestroy called");
        }

        destroyClass.finish.overload() = function(v) {
            console.log("[*] Finish called.");
        }
     console.log("[*] Hooking calls to System.exit");
    exitClass = Java.use("java.lang.System");
    exitClass.exit.implementation = function() {
        console.log("[*] System.exit called");
    }
    killClass = Java.use("android.os.Process");
    killClass.killProcess.implementation = function() {
        console.log("[*] killProcess called");
    }
    finalizersClass = Java.use("System");
    finalizersClass.runFinalizersOnExit.implementation = function(){
        console.log("[*] runFinalizersOnExit called")
    }

    });

});

Hook on JIT Decryption

To add resiliency to reverse engineering, it is common only decrypt string just-in-time. If you would like to read more on Mobile application reverse engineering resiliency, feel free to check out on this page. Below its a JIT example, we found on OWASP crackme Uncrackable level 1.

package sg.vantagepoint.a;

import java.security.Key;
import javax.crypto.Cipher;
import javax.crypto.spec.SecretKeySpec;

public class a {
    public static byte[] a(byte[] object, byte[] arrby) {
        object = new SecretKeySpec((byte[])object, "AES/ECB/PKCS7Padding");
        Cipher cipher = Cipher.getInstance("AES");
        cipher.init(2, (Key)object);
        return cipher.doFinal(arrby);
    }
}

We can easily hook on this function to view the JIT decrypted string.

 aaClass = Java.use("sg.vantagepoint.a.a");
        aaClass.a.implementation = function(arg1, arg2) {
            retval = this.a(arg1, arg2);
            password = ''
            for(i = 0; i < retval.length; i++) {
               password += String.fromCharCode(retval[i]);
            }

            console.log("[*] Decrypted: " + password);
            return retval;
        }

TouchId Bypass

To demonstrate some other examples of client-side bypass on iOS, we use an example that was demonstrated by leonjza amazing objection tool. An iOS application can not confirm the devices passphrase / TouchID directly via code, but Apple made it possible via the LAContext helper class. If the touchId is authenticated successfull, it will return a success boolean and it will execute what ever code that devs program to execute when it is successful. Leonjza did an amazing job covering the topic.

Summary

These demonstrate how easy it is to bypass client-side security. It is important to understand it is always possible to bypass client-side security, hence it is important to consider what portion of the code and data should be on the client or server.

Feel free to try out OWASP Crackme if you wish to learn and try out dynamic instrumentation :)

If you haven't read about my post about cracking the owasp crackme with cycript, you can read it here.

Reference

https://developer.android.com/training/articles/security-ssl.html
